F X F Brass Ball Valve Cw617n 15mm Lockable Handle Nature Color

Product Categories
Zhejiang Yalong Valves Co., Ltd
Contact Now

F X F Brass Ball Valve Cw617n 15mm Lockable Handle Nature Color

Brand Name : YALONG

Model Number : YL265

Certification : CE, ISO9001, ISO14001

Place of Origin : CHINA

MOQ : Negotiated

Price : Negotiated

Payment Terms : L/C, T/T

Supply Ability : 20000PCS/DAY

Delivery Time : 35Days

Packaging Details : Normal Package or can be Customized.

Surface treatment : nature color

Material : CW617N

Application : General,Household Usage

Standard or nonstandard : Standard

Body material : Brass

Temperature of media : Normal Temperature

Port size : DN15-DN20(1/2"-3/4")

Connection : Female-Female

Contact Now

YL265 CW617N 15mm F X F Brass Ball Valve With Lockable Handle Nature Color 20mm Ball Valve

Description of product:
Materials: Brass
Surface: Nature Color
Connection Thread: Female NPT x Female NPT
Size: 1/2"~3/4''
Working Pressure: 1.6MPa
Working media: Water

  • Details

​Brass Valve Body: High-density forging, no blister, no air holes, no leakages. Made by special high precision CNC machines.

Brass Bonnet: High-density forging, no blister, no air holes, no leakages. Made by special high precision CNC machines.

Valve Ball: Smooth and wear resisting, with good sealing performance.

Brass Valve Stem: Made of hot rolled brass, high tensile strength, good toughness, long-term use without deformation, fracture.

Ball Seat: Made by pure PTFE(polytetrafluoroethylene), with high elasticity and wear resistance, is not easy aging.

Handle: Red AL handle.

O-ring: NBR , which is made of imported raw material, small friction coefficient, long service life and not easy to leak.

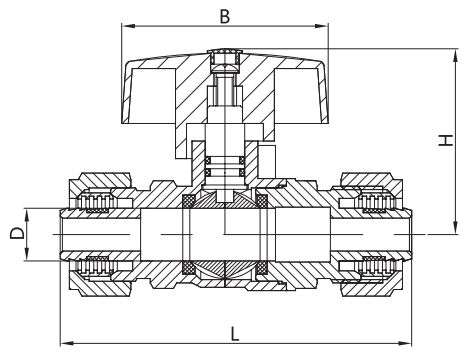

  • Drawing

F X F Brass Ball Valve Cw617n 15mm Lockable Handle Nature ColorF X F Brass Ball Valve Cw617n 15mm Lockable Handle Nature Color

  • Technical Specification
  1. 15mm F X F Brass Ball Valve With Lockable Handle Nature Color 20mm Ball Valve
  2. The thread, color of handle, materials, etc. can be customized.
DN SIZE D H L B
15 1/2'' φ12 39 59.5 32.5
20 3/4'' φ18 41 64 40

Materials of Parts

No. Part Materials
1 Body Brass with nickel plated
2 Bonnet Brass with nickel plated
3 Ball Brass Three-way, chrome plated
4 Seal PTFE
5 Stem Brass HPb57-3
6 O ring NBR
7 Handle AL

  • Enterprise Introduction

EstZhejiang Yalong Vavles CO., LTD established in 1999, located in Yuhuan (The City of Valves), Zhejiang province. Covering an area of over 35,000 square meters. Yalong Valves Company has rich experience in producing various brass valves of all size, including gate valves, ball valves, stop valves, check valves, float valves, strainer valve, etc. We regard quality as our company’s lifeblood and of paramount importance and while increase investment in producing equipment, and purchase advanced inspection machine. Not only in the pass but also in the future, we insist the belief --“Quality first and offer best service”. we keep on management innovation, technological innovation, Channel Innovation and service innovation.

Yalong Valves company, classical and durable, is worth your trust!l

Welcome customers from all of world to win-win cooperation; join hands to create a better future!

F X F Brass Ball Valve Cw617n 15mm Lockable Handle Nature Color

F X F Brass Ball Valve Cw617n 15mm Lockable Handle Nature ColorF X F Brass Ball Valve Cw617n 15mm Lockable Handle Nature ColorF X F Brass Ball Valve Cw617n 15mm Lockable Handle Nature Color
